Hydraulic Drilling Mast

Hydraulic Drilling Mast

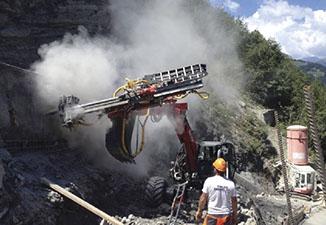

Founded in 1967, Morath has evolved from a small family set-up to a globally recognised company in providing solutions on drilling – portable drilling, slope drilling, drilling unit attachments, etc.

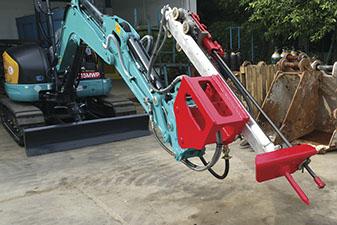

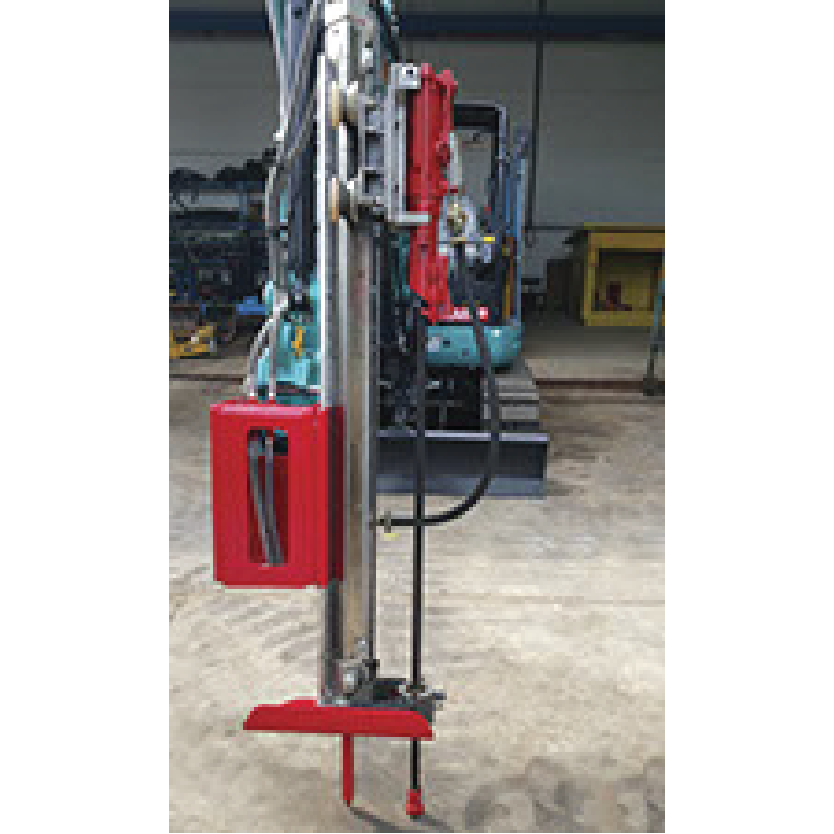

• Photo shows AK12/80 coupled with TOKU TS-55 rock drill

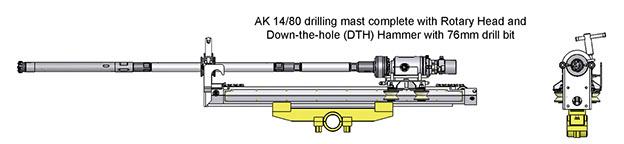

• Optional – can also coupled with Down-the-hole (DTH) hammer


Model Variants Comparison

Model AK12/80 AK14/80
Max drilling capacity Ø 115 115
Dimension L x H x B (mm) 1,817 x 225 x 290 2.057 x 225 x 290
Feed Length (mm) 1,200 1,400
Weight (kg) 40 43
Max feed force at 80 bar 3,800N 3,800N
Max retraction force at 180 bar 7,200N 7,200N
Max operating pressure (bar) 200 200
Oil requirement Approx 15l/min Approx 15l/min
