If you have not installed a FRL (Air Treatment System) in your air supply system, we like to recommend that you install one to protect your air tools and other air-powered equipment. Air Treatment System can ensure longer and trouble-free operations for air products
 |
Filter Regulator Lubricator (FRL) |
 |
Filter (F) |
 |
Regulator (R) |
 |
Lubricator (L) |
 |
Filter Regulator & Lubricator (FR+L) |
 |
32NV-050 – 1/4″PT
Mini Line Oiler |
 |
32NV-051 – 3/8″PT
Mini Line Oiler |
 |

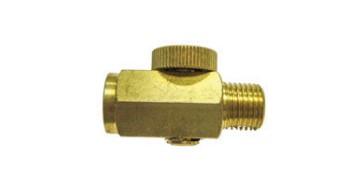

SR-3 – Adjustable Air Regulator
To regulate air flow and control air tool speed and power |
| Size Code | 20 | 30 | 40 | 50 | 60 | 80 |
| Air Inlet Size (Inch) BSP thread | 1⁄4 | 3⁄8 | 1⁄2 | 3⁄4 | 1 | 1 1⁄2 |
| Max. Flow Rate (L/min) | 800 | 1,500 | 3,000 | 6,000 | 7,000 | 12,000 |
| Operating Temp. Range (°C) | Temperature Range – 5°C to 50°C | |||||
| Max. Operating Pressure | 1.0MPA / 10 Bar | |||||
| Weight (kg ) FRL Set | 0.73 | 1.00 | 1.34 | 4.20 | 4.34 | 7.5 |
